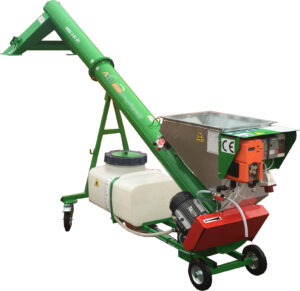

The PNSh-3-01 P Auger-type Seed Treater (designed to fill big bags)

An updated version of the PNS-3 (P) “Farmer” auger treater for unloading treated seeds into “big-bag” type bags.
The treater is intended for treatment of seeds of grain crops with water solutions or suspensions of treating agents according to the “List of pesticides and agrochemicals approved for use in Ukraine”.
The treater is a mobile, four-wheeled unit consisting of a tank with a hydraulic mixer, working fluid dosing pump, seed hopper, seed dispenser, rubberized auger for working with crops prone to damage with discharge throats and a working fluid dispenser.
Parameters and dimensions
Unit of measurement
Model PNSh-3-01
Type mobile
Productive capacity for 1 h of the processing time (when treating wheat grain) t/h from 1.0 to 3.0
Dry (structural) mass, no more than kg 150
Working liquid tank capacity, no more than dm3 100
Delivery of the solution by the dosing device dm3/min 0.1 – 3,3
Power supply – from the AC electrical power network, voltage V 380
Power consumption kW 1.6
Height of loading seeds into the hopper, no more than mm 1000
Seed hopper capacity, no less than dm3 60
Height of hanging bags to the discharge spout mm 1400
Overall dimensions, no more than
length mm 3515
width mm 1205
height mm 1980
Service life, no less than years 5
