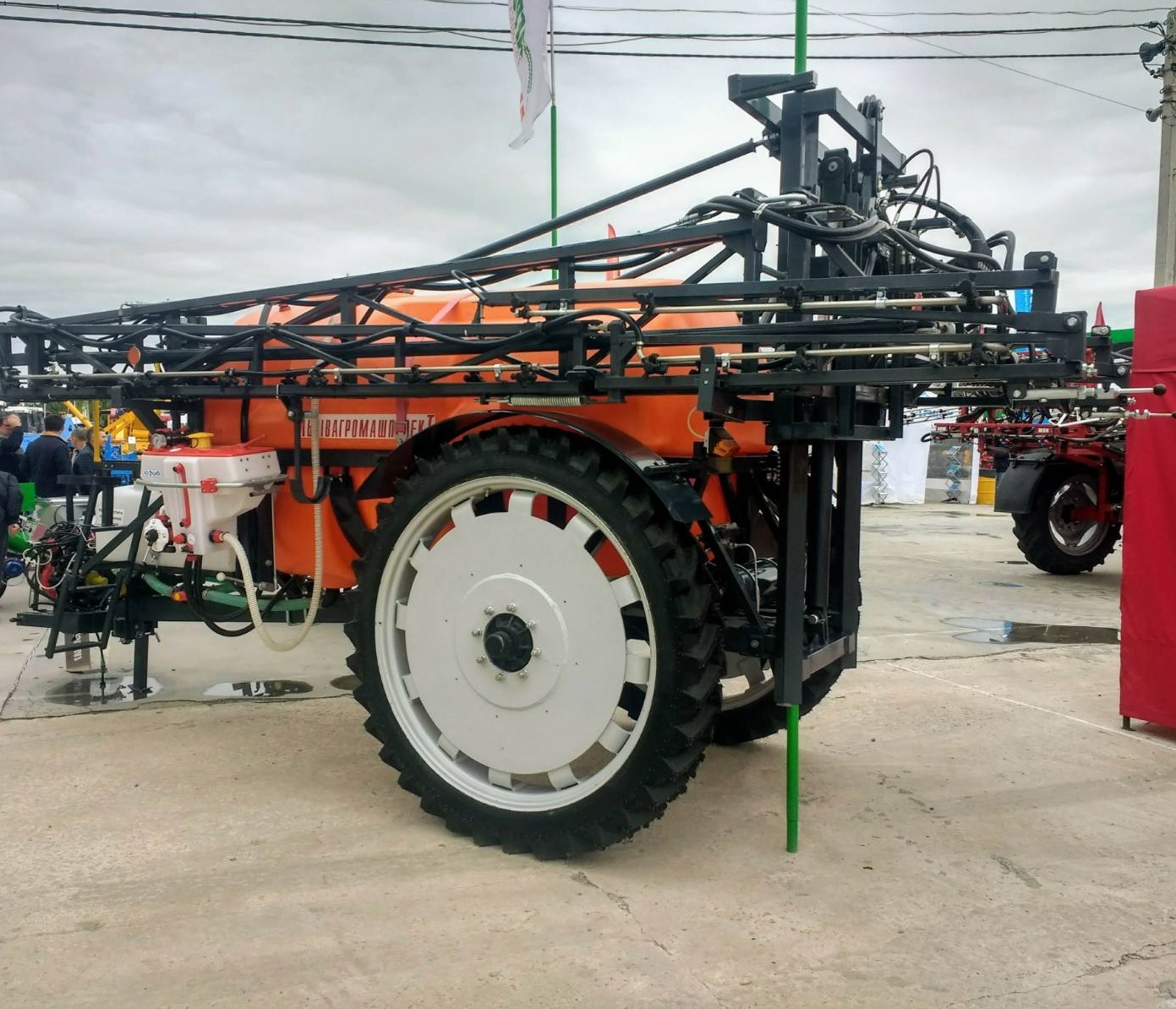

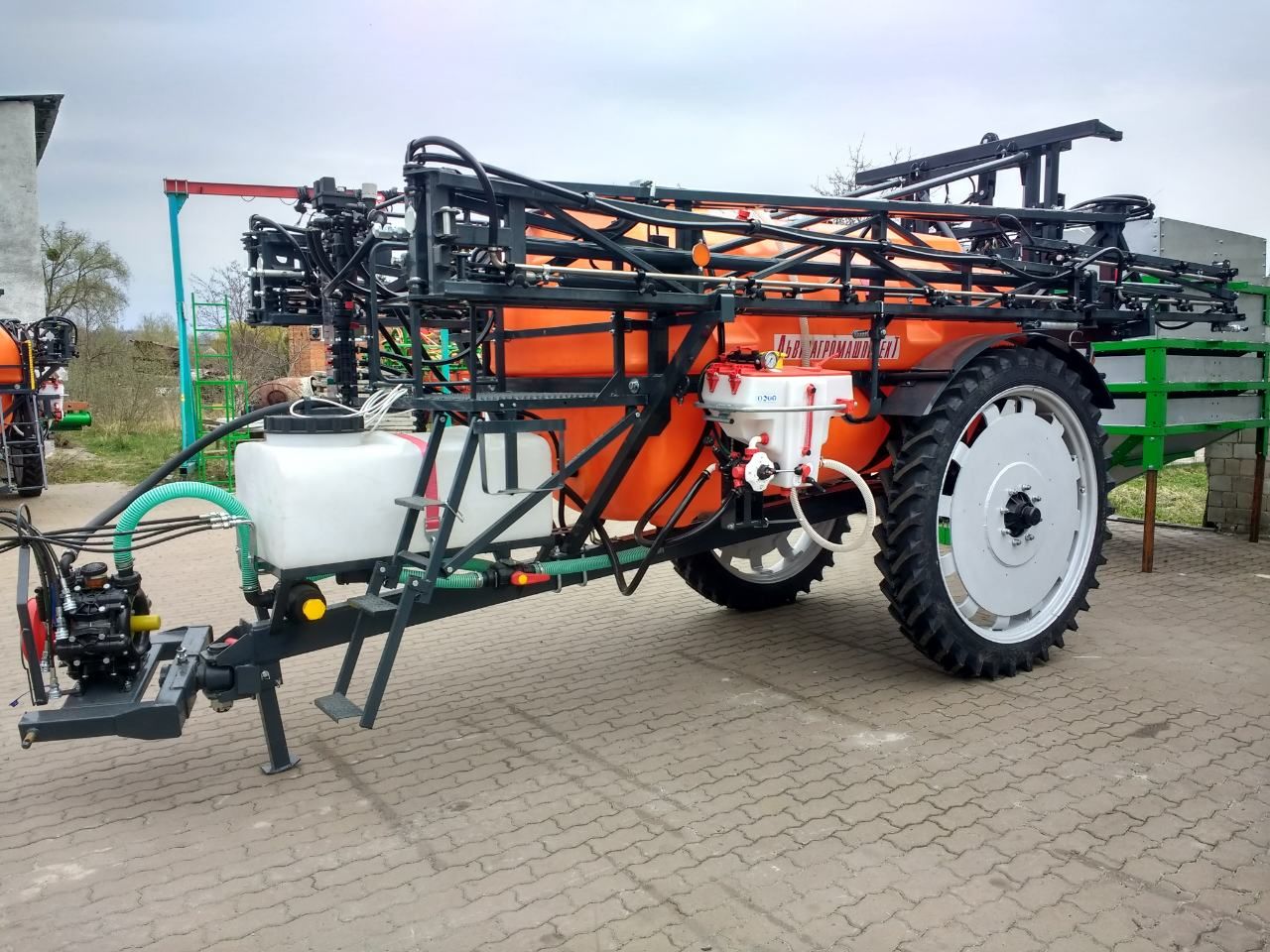

Sprayer OPSh-3524/3521 ASU+GPS

Technical characteristics of the sprayer OPSh-3524/3521 ASU+GPS
• Rod - space truss, two-hinged pendulum suspension that provides full stabilization of the rod, hydro- and mechanical locks for fixing the rod in the unfolded position, full hydraulic folding/unfolding;
• The frame, the rod slider are made of a thick-walled square tube with a sliding system using polymer materials, a cylinder-corrector (enables work on slopes);
• The presence of a braking system is a safety requirement.
• Trailing device for the tractor drawbar: provides better conditions for the operation of the cardan drive; the possibility of increasing the load on the front part of the sprayer.
• Powder polymer painting
• Stainless steel collectors diam. 1/2, cutting devices and spray diffusers of leading companies (LECHLER / TEEJET);
• Polymer tank 3500 l., two hydraulic mixers, special spray diffusers for washing the tank;
• Four-stage filtration system of the hydraulic fluid;
• Annovi Reverberi pump, 250 l/min;
• Mixer – Polmac 35
• Cardan drive BONDIOLI PAVESI, 6 x 8;
• Light signaling (stop-gauge-turn);
• Flushing system with an additional 250 l tank;
• Wheels 9.5 x 48;
• The track is adjustable (smoothly) from 1.8 to 2.1 m;
• The working height of the rod is 500-2100 mm;
• Hose for self-refilling 4 m with a float filter;
• The 7-section Teejet 845 E computer system ensures high-quality execution of the technological process and the ability to work with navigation systems;
• Teejet Matrix 908 navigation system + a set for disconnecting sections in automatic mode
• Clearance - 750 mm
Warranty - 24 months.

Additional sprayer options
To order, the sprayer can be supplemented with:
1. multi-position spray heads;
2. injector spray diffusers for operation in winds up to 6 m/s;
3. devices for introducing UAN.
4. night illumination
