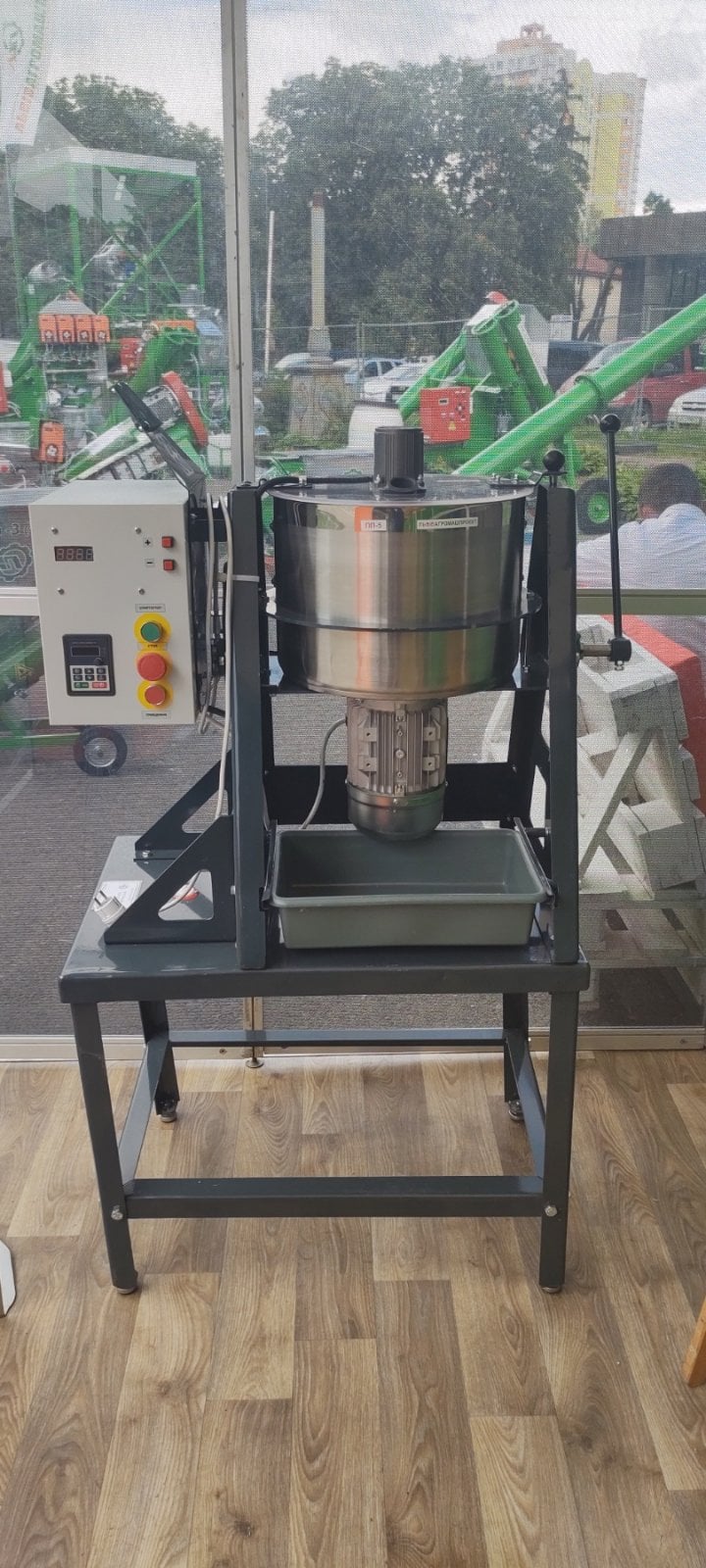

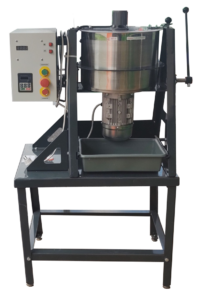

Portion treater PP-5

Portion treater PP-5 stands for an easily operated batch seed treater, designed for complex treatments. The seed treater comes with a range of customization options to make sure it fits your pelletizing and coating needs.

With modern complex treatments will allow you to apply treatment evenly in small dosages for good economy and correct treatment of each seed
The treater is intended for chemical protection of plants by treating the seeds of agricultural crops with water solutions or preparation suspensions, with a water consumption of than 10 ml per 1 kg of seeds recommended for use
Technical data of the treater are given in the table below:
Name of parameter and size
Unit of measurement Norm
Type Stationary
Maximum amount of seeds of one portion in terms of wheat (bulk density 780 kg/m2, humidity 14%) kg 5 max
Treatment time s 5 – 600
Number of rotations of:
rotor during treatment rpm 300 - 500
rotor during cleaning rpm 1800
disk spray diffuser rpm 1250
Mass kg 72
Power supply - from the alternating current power grid, voltage V 220
Installed capacity kW 1.2
Height of loading the seeds into the container mm 1250
Seed discharge height mm 700
Overall dimensions, no more than (LxWxH) mm 850x550x1400
