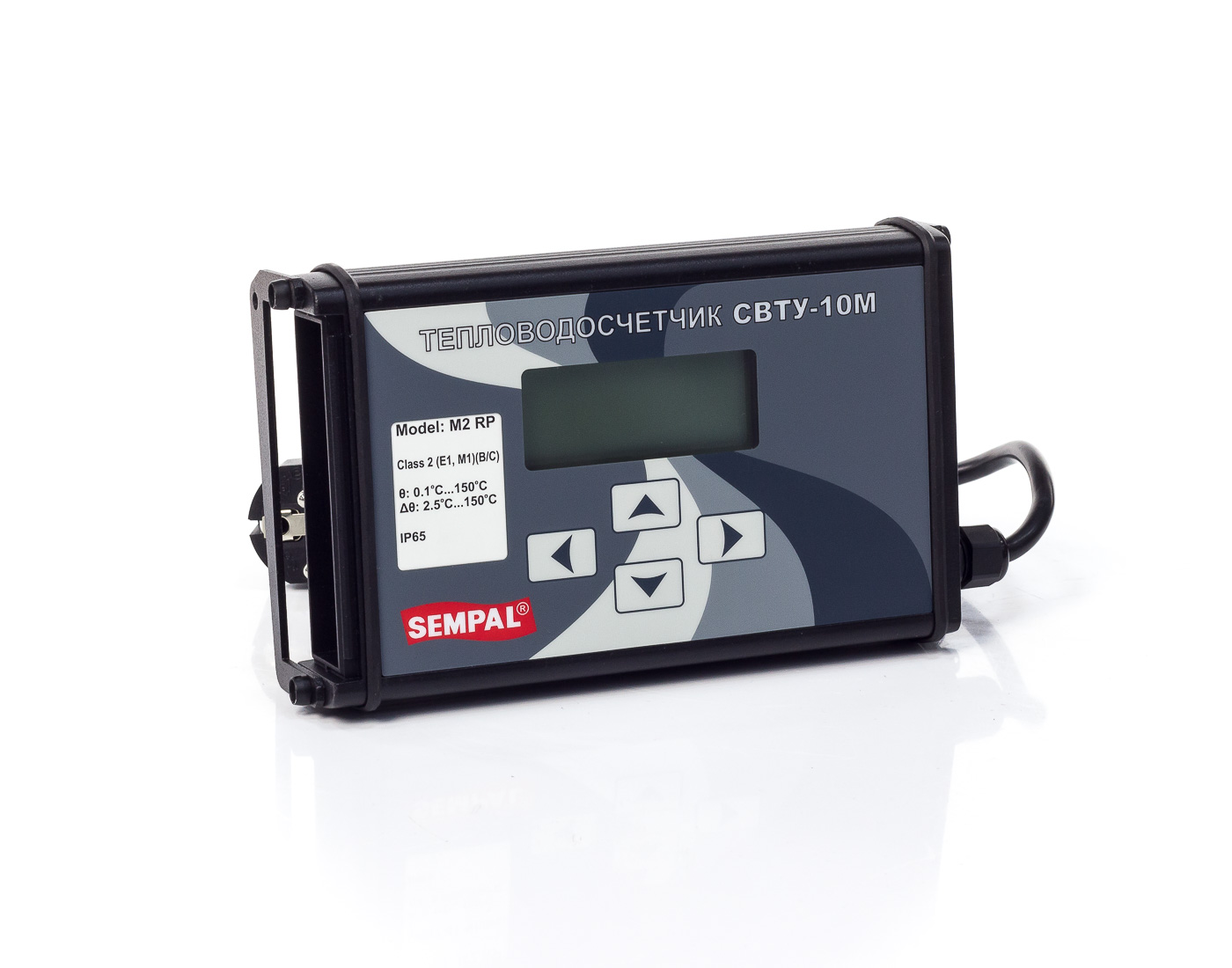

SVTU-10M WATER METER

The device is used for large scale diameters of pipes. More often we can see it on:
- enterprises;
- educational institutions or kindergartens;
- thermal and nuclear power plants;
- administrative buildings and hospitals.

SVTU-10 M equipped with multistage protection system that used against falsifications. Availability of archives for data saving (hourly, daily, monthly, yearly) ensures comfortable device service.

Industrial meters have a range of features:

- the device has connection with two channels of flow measurement and with five temperature measurement channels. In addition, it has connection with two temperature and 2 pressure sensors and with two external flow meters (with impulse outputs);
- there is heat and water accounting with possibility of automatic switching mode;

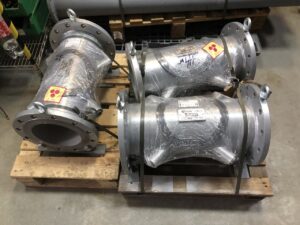

- backup flow sensors are mandatory available. It is about big flow meters with diameter over then 150 mm. Backup flow sensors allow to change useless flow sensors without break;
- we ensure all cables and sensors sealing. It's made for protection against atmospheric effects of moisture and emergency flooding;
- sluice construction of the sensors allows to provide installation and repairing under pressure without flow stop in a pipeline;
- wide self-diagnostic possibilities ensure data saving and printing. It can indicate more than 40 possible defects during heat accounting inside and outside the accounting node;
- the device measures both flow directs;
- free software has reading possibility to PC or Android;
- besides the usually mechanical plug we used electronic sealing with passwords for reliable protection against falsifications and unauthorized access. In addition, device has events and moments fixing. It has input/output reasons fixing to.
