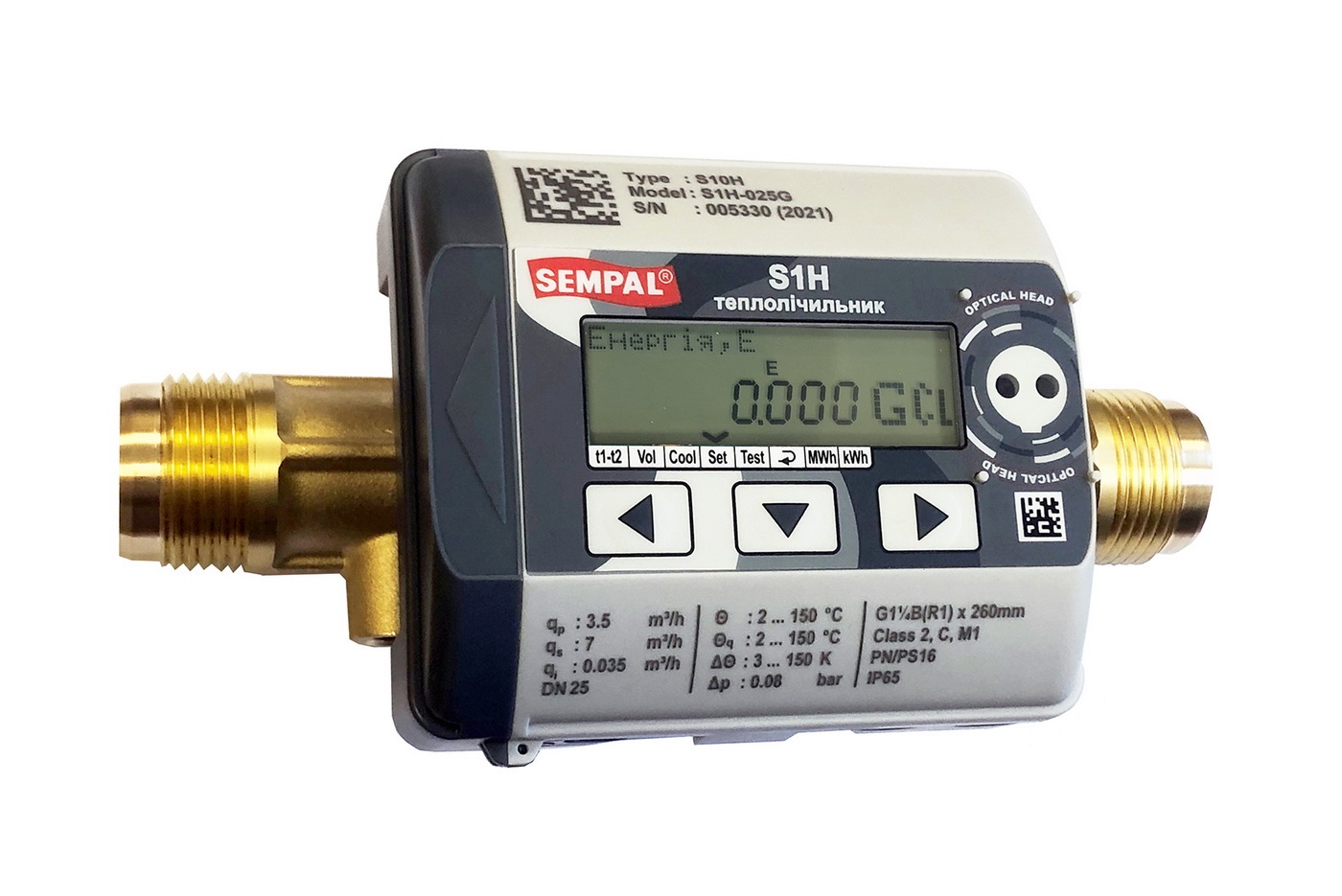

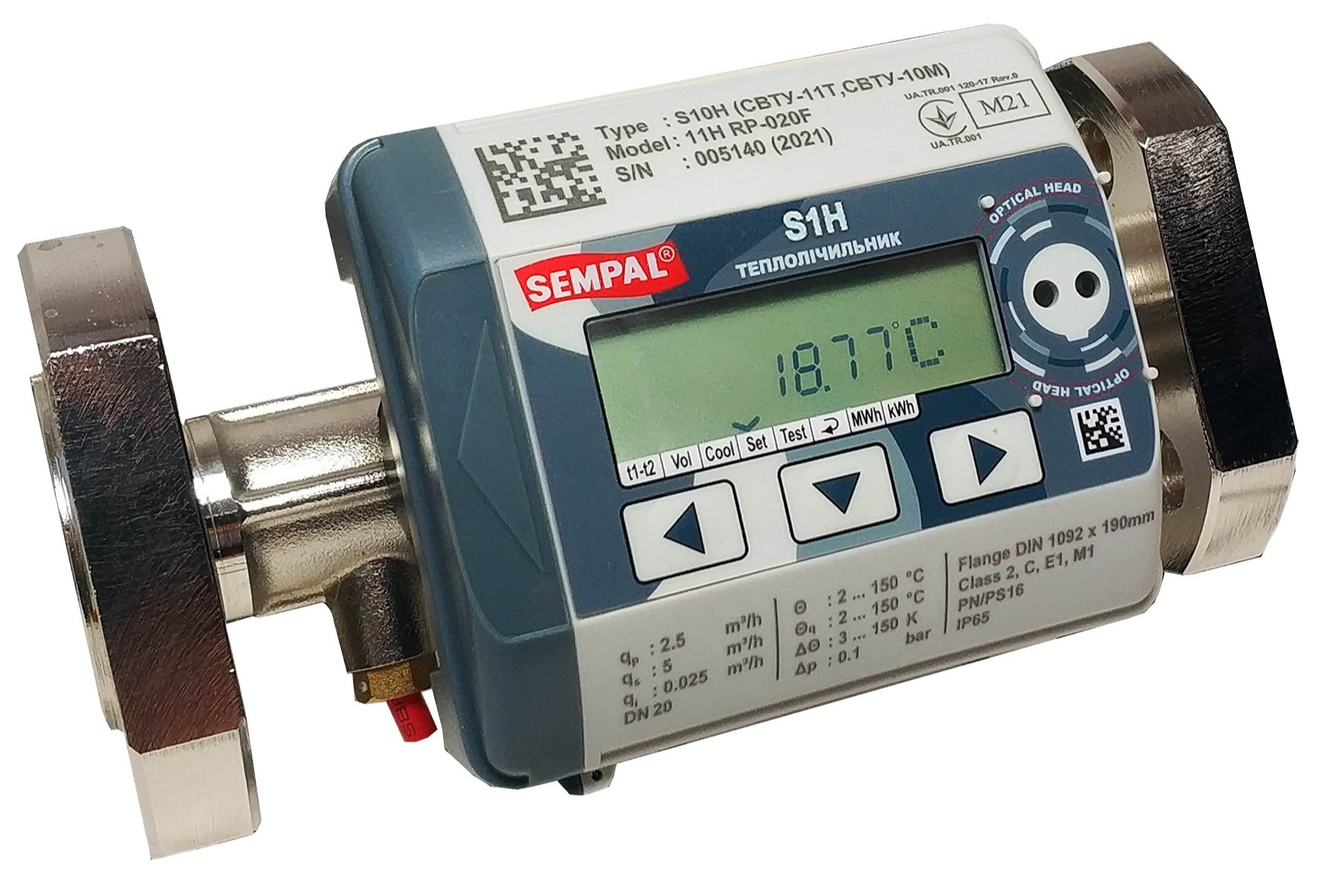

S1H HEAT METER

S1H heat meter designed to measure thermal energy on water heating systems and hot water supply. The devices can be used for energy accounting. It is about energy that used for air condition systems cooling and for cold and hot water consumption volume accounting.
Service life before the battery change is to 16 years. There is appropriate warning on display one-two months before the full discharge. In case there is water absence in a pipeline device goes into energy-saving mode.
A comfortable connection between keyboard and display provided by manufacturer. In case there are not an optical port at hand, data installation and control can be done by using buttons and text line on the front panel. In addition, it can be done by optical port and PC connection to.

Included in the delivery package:

- Flow meters - DN15-100. There are made from brass or stainless steel. There is IP-68 protection degree. - 1-piece;
- For two-channel meter – 2-piece;
- Flow sensors – 2-piece. For two-channel – 4-piece;
- Cables from electronic block to TS-1.15, 2, 3, …20 m increments, or to another flow measuring section;
- The heat meters are identical by overall dimensions to modern European manufacturers. It makes possible to replace heat meters without usage of straight sections;
- S1H electronic block. Case made of plastic. Protection degree – IP-65. – 1-piece;
- Heat meters have a 4-tariff accumulator which is possible to print data for chosen tariff.
