S1F WATER METER

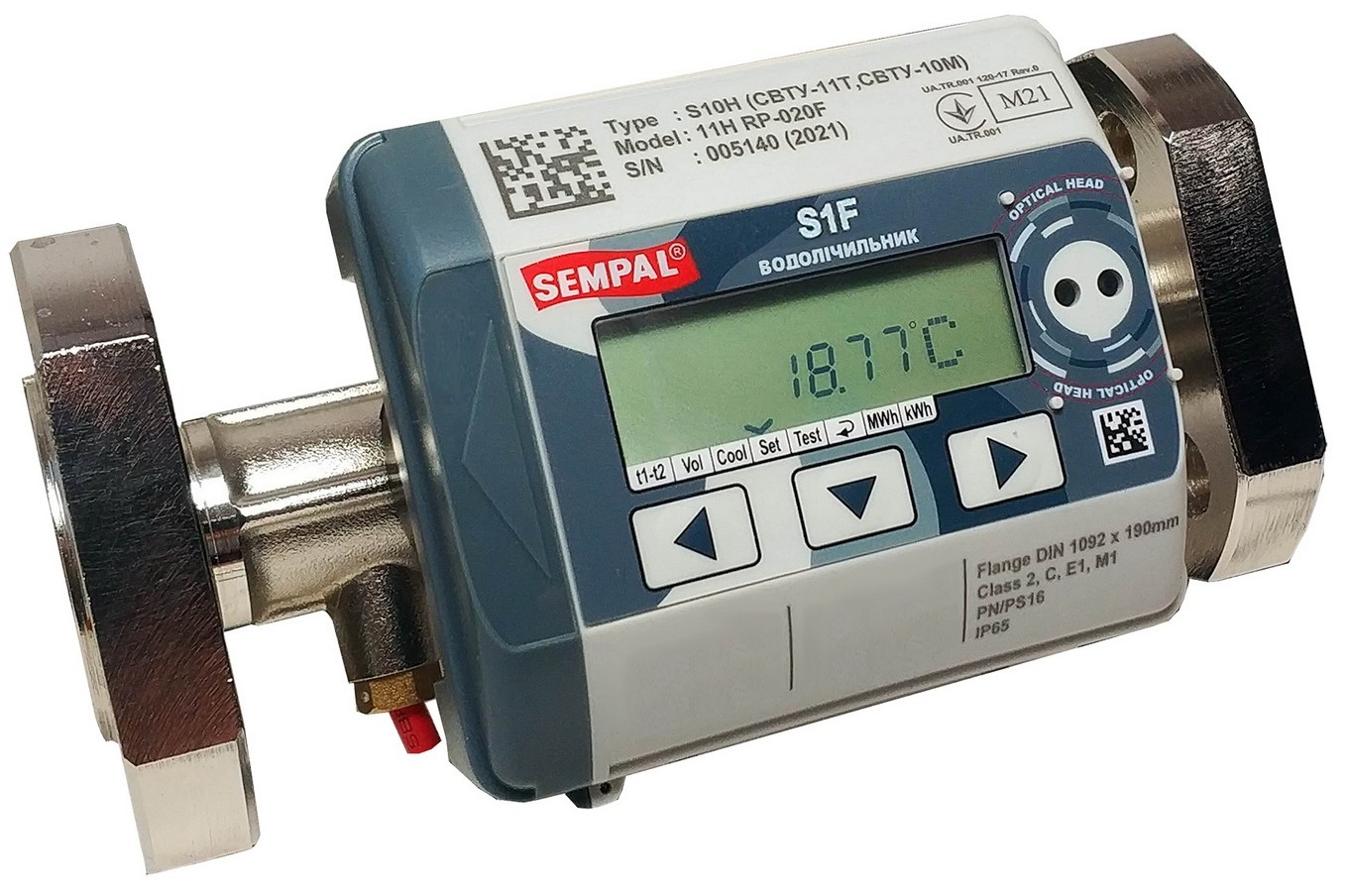

S1F is an ultrasonic water meter. It's for water volume measuring in systems of cold and hot water supply or water heating systems. Powering ensured by lithium battery with 3.6 V. Service life before the battery change is to 16 years. There is appropriate warning on display one-two months before the full discharge. In case there is water absence in a pipeline device goes into energy-saving mode.
A comfortable connection between keyboard and display provided by manufacturer. In case there are not an optical port at hand, data installation and control can be done by using buttons and text line on the front panel. In addition, it can be done by optical port and PC connection to.

Included in the delivery package:

- Flow meters - DN15-100. There are made from brass or stainless steel. There is IP-68 protection degree. - 1-piece;
- For two-channel meter – 2-piece;
- Flow sensors – 2-piece. For two-channel – 4-piece;
- Cables from electronic block to TS-1.15, 2, 3, …20 m increments, or to another flow measuring section;
- The water meters are identical by overall dimensions to modern European manufacturers. It makes possible to replace water meters without usage of straight sections;
- S1F electronic block. Case made of plastic. Protection degree – IP-65. – 1-piece;
- Water meters have a 4-tariff accumulator which is possible to print data for chosen tariff.
